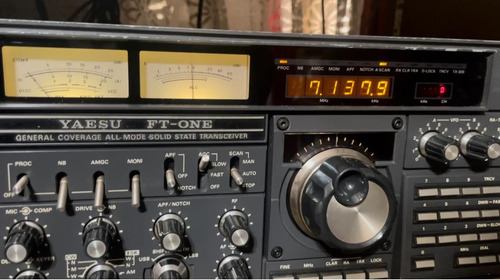

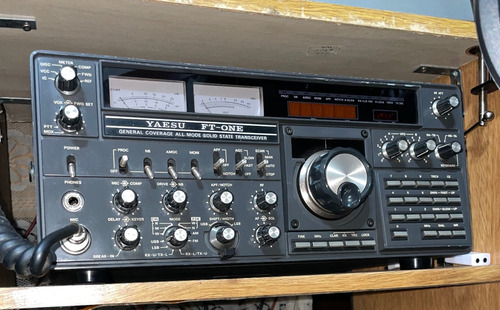

Yaesu Ft One (Usado)

Descripción

YAESU FT ONE - 100 Funcional.
Bateria AGOTADA.

SPECIFICATIONS
GENERAL
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.15-30 MHz
Tuning steps: 10 / 100 Hz, 100 KHz, 1 MHz
Frequency stability: Less than 300 Hz during the first 30 minutes after 10 minutes warmup.
Less than 100 Hz every 30 minutes thereafter
Mode: AM / LSB / USB / CW / FSK (FM option)
Channels / memory management: 10 regular
RAM storage (External power needed for memory retention)
RAM board and battery holder option (Three LR6 / AA batteries)
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Power supply: Mains: 100-120 VAC or 200-234 VAC (3-pin IEC C14 connector)
or 13.8 VDC ±10% (8-pin Jones connector)
Current drain / power consumption: RX: Max 2.7 A @ 13.8 VDC (90 VA @ mains)
TX: Max 20 A @ 13.8 VDC (560 VA @ mains)
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 370*157*350 mm (14.57*6.18*13.78")
Weight: 17 Kg (37.48 lb)
Other features: NB. IF shift. Notch. VOX. SWR-meter. Variable IF bandwidth. Full QSK.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne (AM/SSB/CW/FSK)
1st IF: 73.115 MHz
2nd IF: 8.9875 MHz
Triple conversion superheterodyne (FM)
1st IF: 73.115 MHz
2nd IF: 8.9875 MHz
3rd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.15-1.8 MHz: 30 uV
1.8-30 MHz: 2 uV
SSB/CW(W)/FSK(W) (10 dB S/N)
0.15-1.8 MHz: 5 uV
1.8-30 MHz: 0.3 uV
Selectivity: SSB/CW(W)/FSK(W): 2.4 KHz (-6 dB), 4 KHz (-60 dB)
Image rejection: 80 dB
AF output power / speaker: 3 W at 10% distortion / 4 ohm
External speaker connector: 3.5 mm, 4-16 Ohm

Sin garantía
